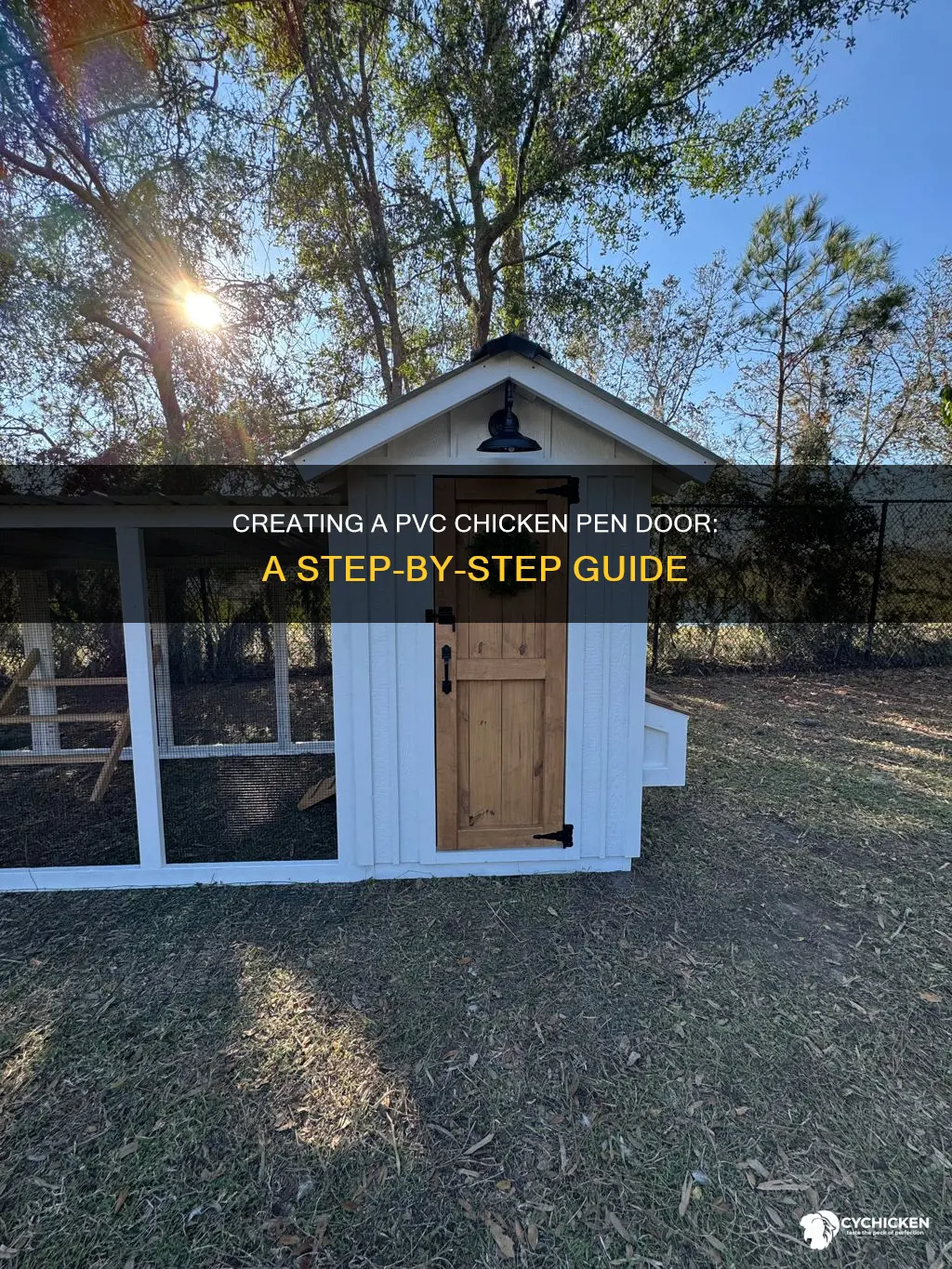

Creating A Pvc Chicken Pen Door: A Step-By-Step Guide

Adding a door to your PVC chicken pen can be a straightforward task, and there are a variety of options to choose from. You can opt for a sliding door, a double door, or even an automatic door. The process will involve measuring and cutting the PVC to fit the opening of your chicken coop, and you may need additional materials such as wood, screws, and tools like a drill or saw. Some people have even created innovative solutions, such as a 3D-printed one-way chicken door. The type of door you choose will depend on your specific needs and preferences, as well as the design of your chicken coop.

Building a sliding door

Firstly, you need to decide where you want to locate your door. It should be in a spot with plenty of room and at a high point in the coop, as the mechanism for the sliding door will require some space.

Next, you need to gather your materials. You will need a 1"x12" board for the door itself, and scrap pieces of 1"x4" or 1"x3" to hold the door to the coop. You will also need a cord, such as a piece of clothesline, and some screw eyes and hooks for the cord to attach to.

Now, it's time to build the door and the sliding mechanism. Cut your 1"x12" board to the correct width for your opening. Then, cut four pieces of 1"x4" for the sides, offsetting the top pieces by about half an inch to create a channel for the door to slide up and down. You can also add a bottom piece that overlaps the door to prevent predators from pushing it up. Screw the 1"x4" pieces to the sides of the door, and then attach another piece of 1"x4" that's offset by one inch from the first piece to create the channel.

Finally, attach the cord to the screw eye at the top of the door, and thread it up the outside wall of the coop, through another screw eye, and then down to a hook where you can tie a loop to hold the door open. To close the door, simply remove the loop and let the door drop down.

For an automatic door, you can use an electric car antenna and a timer. You will need to work out how to mount the antenna above the door and wire it up to the timer.

Making a double door

Planning and Materials

First, decide on the size and location of your door. The door should be located in a spot with ample room and at a high spot in the pen to allow for the door mechanism to operate smoothly. For the door frame, you'll need two PVC pipes or wooden boards that are slightly longer than the height of your desired door opening. Additionally, you'll need two PVC pipes or wooden boards for the door's width. Ensure you have enough PVC pipes or wood to create a sturdy frame.

Building the Frame

Use the 1x4s (or equivalent) and pocket holes to build the frame for your door. Drill the pocket holes at 3/4" depth and use 1 1/4" screws and wood glue to securely attach the pieces together. You can also use PVC cement to join the PVC pipes if you're using PVC for the frame. Ensure that your frame is sturdy and square, as this will be the foundation of your door.

Hanging the Doors

Now it's time to hang the double doors within the frame. You can use hinges to attach the doors to the frame, ensuring they can swing or slide open smoothly. If you're creating sliding doors, follow the steps outlined in other sources, which involve creating a channel for the doors to slide up and down. Ensure the doors are hung securely and can operate independently of each other.

Adding Latches and Locks

Install latches on each door to allow them to open individually and provide a way to secure them closed. You can also add a lock or latch at the top or bottom of the door to secure it in place when both doors are closed. This will help keep your chickens safe from predators.

Finishing Touches

Finally, you can add any desired finishing touches, such as painting or decorating the doors to match your chicken pen. Ensure that the doors operate smoothly and provide adequate ventilation for your chickens.

By following these steps, you can create a functional and secure double door for your PVC chicken pen, providing easy access and improved security for your feathered friends.

Using 3D-printed parts

To create a door for a PVC chicken pen using 3D-printed parts, you can follow these steps:

First, decide on the specific design and size of your door, keeping in mind the dimensions of your chicken pen. You can find various 3D models and blueprints online to help with this step, and some software to consider using includes Fusion, TinkerCAD, and SolidWorks.

Next, you will need to gather the necessary materials and 3D print the required parts. It is recommended to use a heat-resistant and UV-resistant plastic such as PETG to ensure durability and longevity. The specific parts you will need to print may vary depending on your chosen design, but some common components include a motor mount, top braces, a lower pole holder, and wire organizers.

Once you have all the necessary 3D-printed parts, you can begin assembling your door. This process will vary depending on your chosen design, but some general tips include using sandpaper to adjust the dimensions of your printed parts, and employing strong adhesives or superglue to ensure a secure fit. If you are including a motor, you will need to mount it inside the rectangular cut-out, aligning the holes with the printed part. You may also need to place bearings in the motor mount parts and use poles or rods to connect the different components.

Additionally, if you want to add automation to your door, you can incorporate sensors and LEDs. To do this, drill holes in the desired locations and secure the sensors with superglue. You can also include wire organizers to manage the wiring.

Finally, test your door to ensure it functions properly and make any necessary adjustments.

Installing an automatic door

If you opt for a DIY approach, you will need an electric car antenna, a power supply (a 12v battery or power source), and some tools like a drill, hot glue, and screws. The antenna will be used to lift and lower the door, and it is recommended to test it before proceeding with the installation.

The next step is to decide on the location of the door. Choose a spot with ample room and at a high point in the coop, considering the space needed for the antenna to move up and down and the placement of the battery. Once you've decided on the location, you can design how the door will work.

For the installation process, follow these steps:

• Attach the C channels: Ensure that the distance between the C channels is the same from top to bottom, as the door needs to slide smoothly along these channels.
• Create a bracket: Use thicker wood to create a bracket with two sides for added strength.
• Attach the bracket: Secure the wooden bracket to another piece of wood, which will serve as the backing.
• Mount the antenna: Decide on the best spot for the antenna on the bracket and screw it into place.
• Wire up the timer and antenna: Follow the instructions provided by the manufacturer or a guide specific to your model.
• Install the door: Depending on the manufacturer's instructions, you may need to create a hole of a specific size to install the door.
• Test and adjust: Ensure that the door operates smoothly and make any necessary adjustments.

If you prefer a Wi-Fi-enabled automatic door, you can purchase one from companies like JVR, which offers a door that can be controlled from a Raspberry Pi or hardwired. You can also consider the Pet Auto Doors website or consult a coop builder for a custom solution. These options may come with different installation procedures, so be sure to follow the manufacturer's instructions.

Choosing the right wood

Wood is the most common building material for chicken coops, and there are many options to choose from. The type of wood you choose will depend on factors such as cost, availability, durability, and ease of use.

If you're looking for a rugged option, marine-grade plywood is a good choice. It is designed with water-resistant adhesives and more durable wood, making it ideal for outdoor use. However, it is more expensive and harder to find than standard plywood. Alternatively, medium-density overlay panels (MDOs) are a cheaper option that can be used similarly and accept paint well.

For framing and roofing, standard softwoods like Douglas fir, hemlock, spruce, or pine are a good choice. These woods are easy to work with and can be treated with a nontoxic sealer or preservative to extend their lifespan. If you're looking for a more natural option, cedar, redwood, and tropical hardwoods are naturally rot-resistant and pest-resistant. These woods can be more expensive, but they will last longer without the need for additional treatments.

When choosing wood for your chicken coop door, consider the size of your flock and the purpose of the door. The door should be large enough for your chickens to move in and out freely, but small enough to prevent predators from entering. You may also want to consider using a door with adjustable features to accommodate changes in flock size or provide extra ventilation.

In addition to the type of wood, you will also need to consider the hardware and treatments you will use. Paint and sealers can protect the wood from the elements, but be sure to choose non-toxic options to avoid harming your chickens. Properly treating and sealing the wood will help to extend the lifespan of your chicken coop door.
